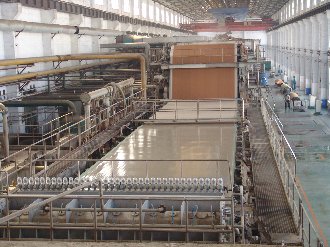

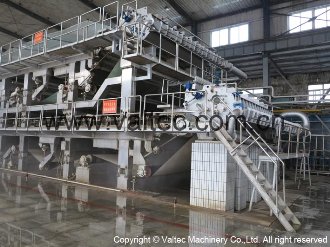

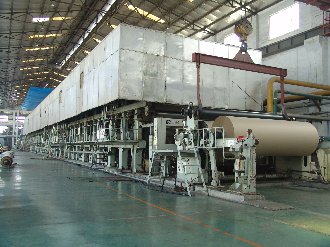

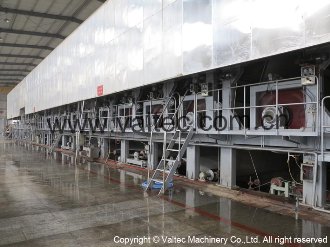

The Testliner paper machines family, combining the pressurized./hydraulic headbox, the MultiLayer wire section, the JumboPress press section, the smooth sizer, the hard calender and the pope reel, are designed to produce testliner paper, corrugating media (fluting)paper, Kraft paper, cardboard and white top liner paper.
Testliner Paper Machine Family
Technical Parameter
Model Specs | TLPM 03 | TLPM 04 | TLPM 05 | TLPM 07 | TLPM 09 |
Trimmed Paper Width (mm)
| up to 4,600 | up to 4,600 | up to 4,600 | up to 5,600 | up to 5,600 |
Design Speed (m/min)
| 400 | 500 | 600 | 800 | 1,000 |
Operating Speed, max. (m/min)
| 350 | 450 | 550 | 750 | 900 |
Gross Capacity (ton/day)
| up to 260 | up to 330 | up to 400 | up to 680 | up to 810 |
Dryer Cylinder Diameter (mm)
| 1,500 | 1,500 | 1,800 | 1,800 | 1,800 |
Headbox
| Pressurized | Pressurized | Pressurized or Hydraulic | Hydraulic Dilution control | Hydraulic Dilution control |
No. of Layers
| 2, 3, 4 | 2, 3, 4 | 2, 3, 4 | 2, 3, 4 | 2, 3, 4 |
Calender (2-Rolls or 3-Rolls)
| Hard nip | Hard nip | Hard nip | Soft nip | Soft nip |
Pope Reel
| Manual reel change | Manual reel change | Maual/Auto reel change | Automatic reel change | Automatic reel change |
Furnish
| OCC, DLK | ||||
