Fourdrinier Towel Paper Machine











Basic Configuration Of Towel Machine

Headbox                                                 :Pressurized type

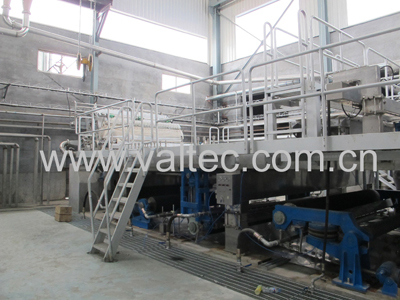

Fourdrinier section                                 :Single wire with breast roll and forward drive roll

Press section                                          :Suction Yankee press + Grooved Yankee press

Yankee section                                       :Double Yankee(Single Yankee+5 Dryers)

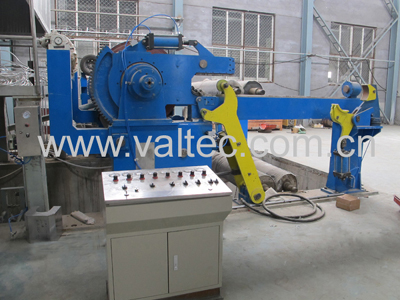

Pope reel                                                :Horizontal cylinder reel with primary and secondary arms

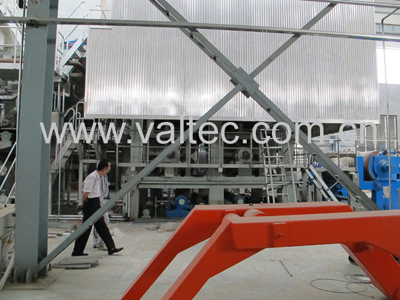

Hood                                                       :High efficiency hood

Fourdrinier Towel Paper Machine

Model/Specs

FTPM 05

FTPM 10

FTPM 12

Trimmed Paper Width (mm)

up to  2,850

up to  2,850

up to  2,850

Basis Weight (g/m2)

35-45

35-45

35-45

Design Speed, Yankee (m/min)

250

350

500

Operating Speed, Yankee (m/min)

200

300

450

Gross Capacity (ton/day)

10-20

20-30

30-40

Yankee Diameter (mm)

3,000

3,000

3,000

Furnish

NBKP,  LBKP, Bagasse pulp
