Centricleaners















Specifications

The cleaner may be used both for virgin pulp cleaning and for recycled stock cleaning.


Performance and character

1. excellent designing structure with higher cleaning efficiency;
2. less fiber loss;
3. low energy consumption;
4. wearable and long use life;
5. convenient installation, maintenance and operation;
6. compact structure and saving area.



Main technical parameters

1. capacity:600-800L/Min.
2. input pressure:0.20-0.35MPa.
3. accepted pressure:0.05-0.15MPa.
4. input consistency:0.5-1.0%.



Applied in


1. cleaning of chemical pulp mechanical pulp and chemmechanical pulp.
2. deinking line for CONP, AONP AND EONP.
3. Recycled pulp line for COCC and AOCC.
4. deinking line for ONP and OMG.
5. recycled pulp line for MOW and SOP.
6. purification system of stock before paper machine.



Structure and assembling


1. The cleaner is consisted of cylinder body, top cone, bottom cone and mouth of rejecting with top cone made of stainless steel and bottom cone and mouth made of ceramic or PU.

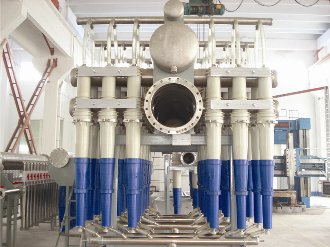

2. Three arrangements

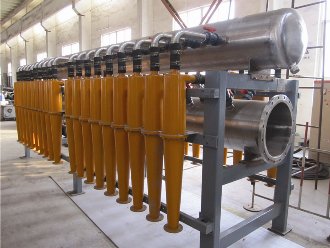

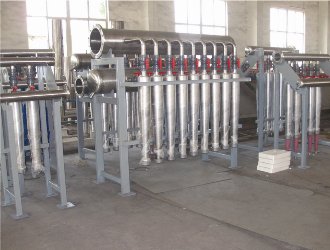

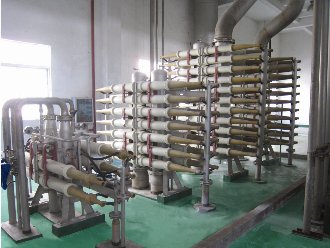

Single or double line or complex arrangement; Frame and bus pipe are made of stainless steel or carbon steel.



Technical Parameter

Model /Modelo

Item /Artículo

LDC-01

LDC-02

LDC-03

LDC-04

LDC-05

LDC-06

Nominal Specification

Nominal Especificación

400

700

1000

800

1800

800

Flow Rate (L/min)

Flujo Tipo (L/min)

350-450

600-700

1000

600-800

1800

600-800

Inlet Consistency (%)

Entrada Consistencia (%)

0.4 - 1.0

Inlet Pressure (MPa)

Entrada Presión (MPa)

0.2 - 0.3

Raw Materials

Materia Prima

Waste Paper, Virgin Fiber

Application

Aplicación

Stock Preparation Line, Pulp Mill, Approach Flow System
